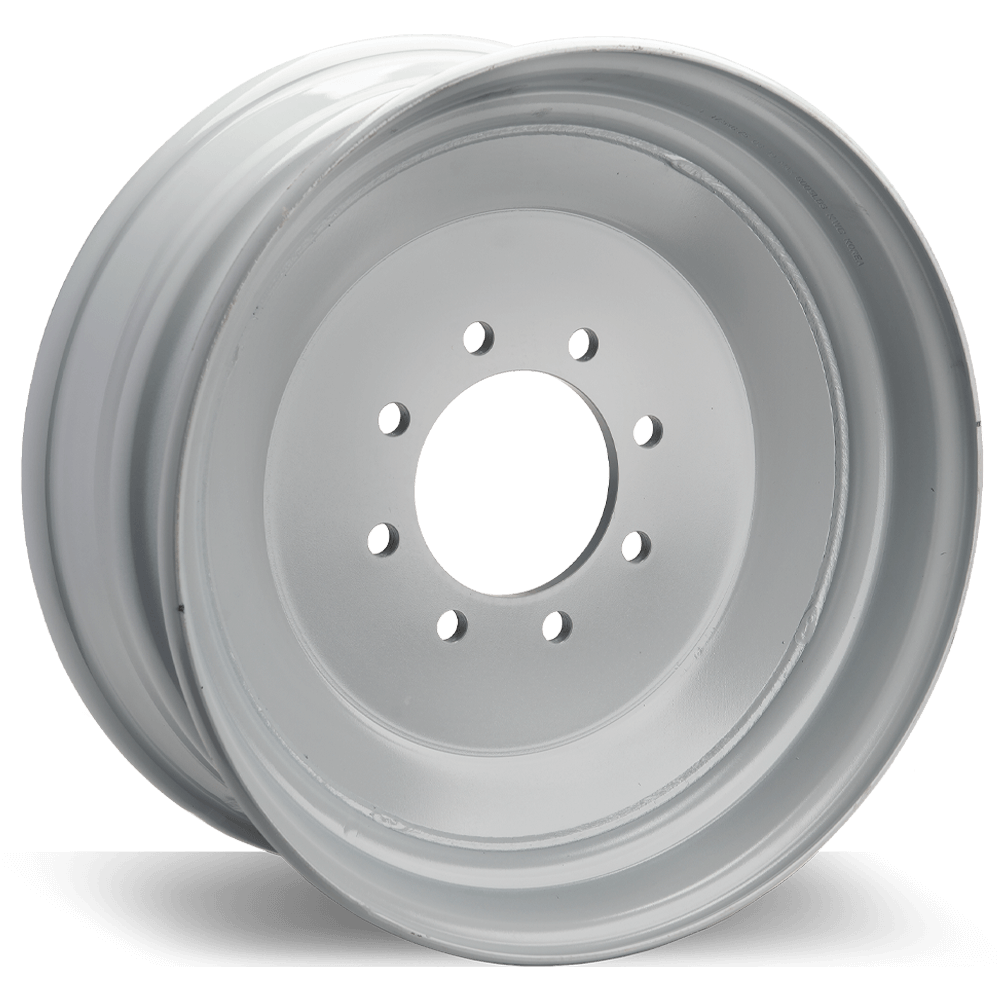

shown in color code 54 Grey
HUB PILOTED 17.5" SINGLE SOLID CENTER
Wheel Offset:
Inset = Positive (+) moves tire towards the centerline of the trailer.
Outset = Negative (-) moves tire away form the centerline of the trailer
SPECIFICATIONS
| Base Part Number (xx - refer to color chart) | Rim Size and Bead Contour | Bolt Hole Pattern | Pilot Diameter (inches) | Stud Size Lug Chamfer | Center Offset (inches) | Load Capacity (lbs) |
|---|---|---|---|---|---|---|
| 017-240-xx | 17.5 x 6.75 HC | 8-6.5 | 4.75 | 5/8" - 18 | - .31 | 4805 |
| 017-241-xx | 17.5 x 6.75 HC | 8-6.5 | 4.75 | 5/8" - 18 | + .19 | 4805 |
| 017-298-xx | 17.5 x 6.75 HC | 8-6.5 | 4.75 | 5/8" - 18 | - .50 | 6000 |
