SOLID CENTER

SOLID CENTER

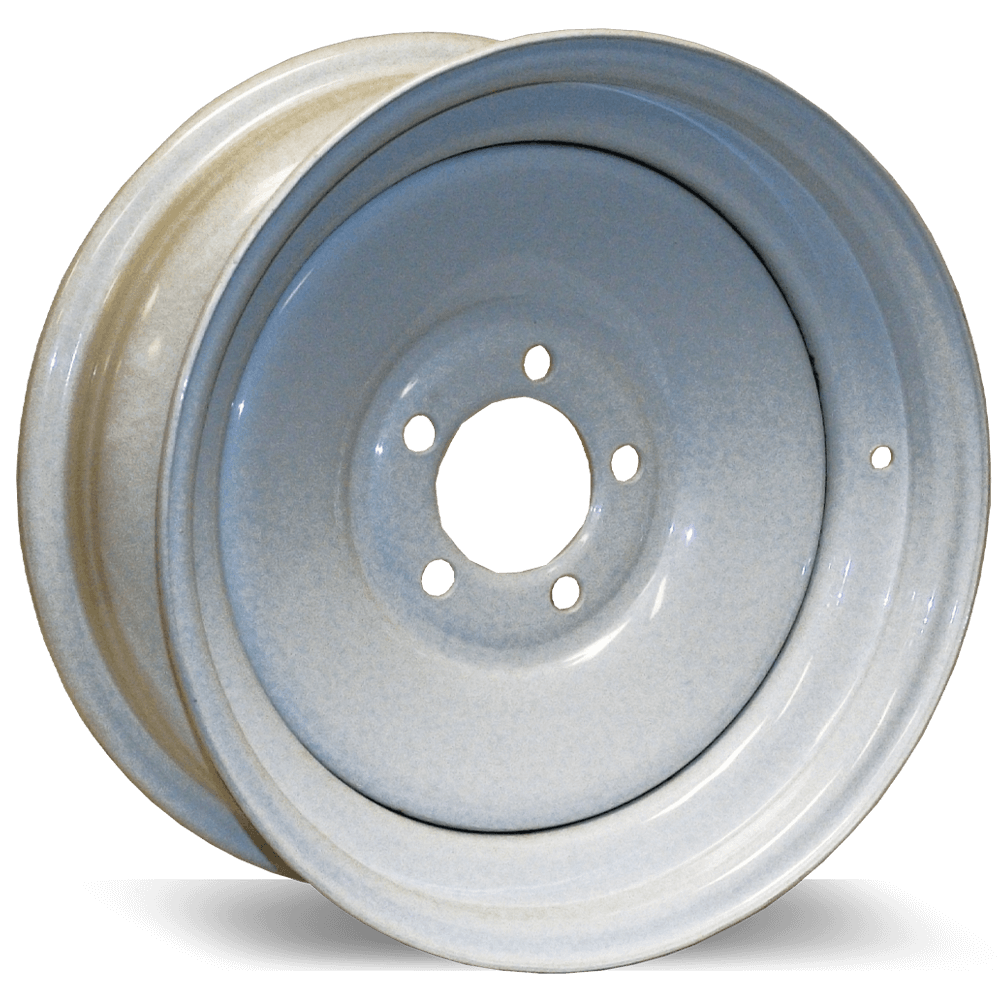

shown in 1W bright white

SOLID CENTER

SPECIFICATIONS
Base Part Number
(xx - refer to
color chart)		Rim Size and
Bead Contour		Bolt Hole
Pattern		Pilot
Diameter
(inches)		Stud Size
Lug Chamfer		Center
Offset
(inches)		Load
Capacity
(lbs)
017-260-xx12 x 4 JA4-4.02.841/2"-20 60°01250
017-295-xx12 x 4 JA5-4.53.191/2"-20 60°01250
017-288-xx13 x 4.5 JJ4-4.02.841/2"-20 60°01660
017-250-xx13 x 4.5 JJ5-4.53.191/2"-20 60°01660
017-252-xx14 x 5.5 JJ5-4.53.191/2"-20 60°01870
017-350-xx15 x 5 JJ5-4.53.191/2"-20 60°02150
017-356-xx15 x 6 JJ5-4.53.191/2"-20 60°02150
017-367-xx15 x 6 JJ6-5.54.271/2"-20 60°02600
